How many wires can you run through a stud hole?

The Answer. According to the National Electrical Code, you can have 4 12/2 nonmetallic sheathed cables through a single bored hole that is fire- or draft-stopped using thermal insulation, caulk, or sealing foam, or where proper spacing is not maintained for more that 24 in.

How many wires can go through a 3/4 hole?

arichard21. my inspector told me that they must not take up more than 50% of the capacity of the hole, or 4 wires max through ANY size hole. he said 3 12-2 wires is pushing it for 3/4", but is still okay.

How many wires can you fit in a 7 8 hole?

They hold 8 or 10 cables in close proximity because each pair is separated by an air gap. HOWEVER, I always run a maximum of two NM in a small (7/8") hole.

How many wires can be stapled together?

Secure only one cable under each fastener, in most cases. Sometimes it is permissible to secure two 2-conductor (plus ground) cables under a single staple, for example, but it is preferable not to double up cables. It is not permissible to secure more than one 3-conductor cable under a single staple.

Can you run wiring through studs?

When running cable along the length of studs or joists, keep the cable to the center of each, leaving a 1 1/4-in. minimum clearance on each side of the framing member. When running cable through studs, drill all holes at the same height so that the cable is run level to the floor.

One Hole, Many Wires! Running Electrical Through the Exposed Ceiling Joists

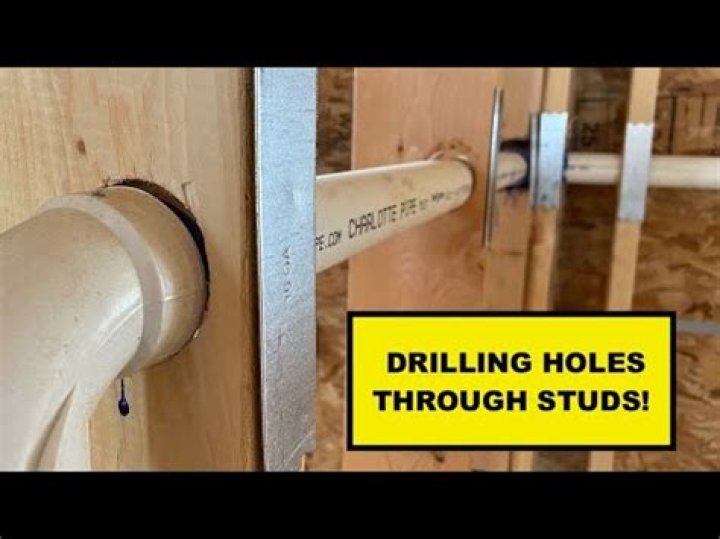

How big of a hole can you drill in a stud?

2. Drilling. Any stud may be bored or drilled, provided that the diameter of the resulting hole is no more than 60 percent of the stud width, the edge of the hole is no more than 5/8 inch (16 mm) to the edge of the stud, and the hole is not located in the same section as a cut or notch.

How many times can you drill into a stud?

To appease the plumbing gods, the codes have made at least one notable exception: In bearing walls you can bore 60 percent size holes—as long as you double up the studs and don't drill through more than two successive pairs of these doubled-up studs (Fig.

How many wires can be pigtailed together?

The only appropriate way to wire a receptacle in a box with three cables is to use pigtails to connect the receptacles. ​Never connect more than one wire under a single screw terminal.

How often do electrical wires need to be stapled?

Article 336-18 stated that cable must be secured in place at intervals not exceeding 4.5 feet (1.37 m) and within 12 inches (305 mm) from every cabinet, box, or fitting.

Can you run two wires one knockout?

Never run two cables into the box through the same knockout opening with pre-installed cable clamps. Each cable requires its own knockout opening and clamp. For installed clamps (whether they're metal or plastic), no more than 2 wires should be installed in each connector of this type.

Can you zip tie electrical wires together?

Electrical zip ties can be used to keep any sort of electric wires properly bundled and out of the way. Whether you need to keep your computer wires tied, an entire server tied down or any other large items keep neat and tidy, cable zip ties are the easy and economical way to get the job done quickly and easily.

How many 14 2 wires can you put in a receptacle box?

Plastic Box Fill Capacities

Capacities for two common sizes: Single Gang Boxes: A total capacity of 18 cubic inches allows for nine #14 gauge wires, eight #12 gauge wires, or seven #10 gauge wires.

How often should Romex be stapled?

The clamps, staples, or braces holding a Romex cable shouldn't be any further than 4.5 feet. However, we recommend stapling after every 2 feet, just to be sure. This is especially true when running a wire where you won't have immediate access all the time.

Can electrical wires be run through the same hole?

Mixed gauge wires can be run thru the same hole if they are #10 or smaller.

Is Romex wiring safe?

Romex wire is one of the better and safer alternatives for the following reasons: Presence of a ground wire. Sheathing is flame-resistant and heat resistant, able to withstand a temperature of 90 degrees Fahrenheit. Longer-lasting due to copper metal composition.

How many electrical cables can be bundled together?

In other words, If I need to run 10 new 15amp/20amp lines, can they bunched together and secured to the floor joist overhead safely, or is there a rule on how many cables can be together? Short answer: No there is no limit to the number of wires that can be bunched together.

Can you put 5 wires in a wire nut?

The answer is yes as long as you use the right size wire nut for the size of the wires that you are splicing.

Is it OK to drill into stud?

Studs – These are actually meant to be hit. Electrical Wires – These are bad to hit. Pipes – These are really, really bad to hit.

Can you damage studs?

"Holes in bearing wall studs may not exceed 40 percent of the width of the stud. Holes in non-bearing walls can't exceed 60 percent of their width." Now given you can drill a hole 40% the width of the stud in a bearing wall, 40% of 3.5" width = 1.4" (~1 3/8).
