What is no load current?

The no-load current is the current required just to turn the motor shaft with nothing connected. It is the current required to overcome the bearing and brush friction plus the aerodynamic drag caused by the rotor moving in the air and moving air through the motor for cooling purposes.

What is no load and full load current?

Zero load means no current is going through the load, i.e. an open circuit. Full load means that all possible current is going through the load, i.e. either a short circuit or some arbitrary maximum current as defined by the situation or problem.

What is no load current of motor?

The current drawn by the induction motor when it is not coupled to the driven equipment is called no-load current of the motor. The equivalent circuit of an induction motor at no load is as given below. The no-load current produces the magnetic field in the motor. There are two parts of no-load current.

What is meant by no load current in transformer?

In the case of no-load, the secondary terminal of the transformer is open. There is no path available for the current to flow on the secondary side. Hence, the transformer does not draw current from the source.

What is no load primary current?

Transformer “No-load” Condition

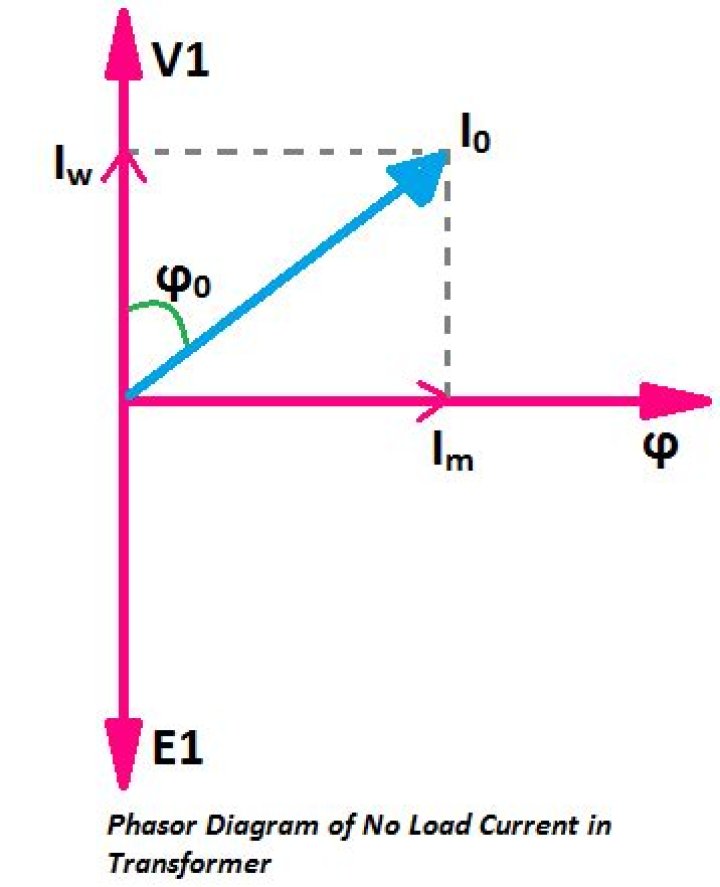

This no-load primary current is made up of the following two components: An in-phase current, I_E which supplies the core losses (eddy current and hysteresis). A small current, I_M at 90^o to the voltage which sets up the magnetic flux.

Transformer No Load Current: Explanation & Diagram

How do you calculate no load current?

It means the motor will be connected as the delta. (all winding series-connected and the junction will be connected to the power supply). No load current at delta connection = 0.3 x Motor Full load current.

Why no load current is less?

During the running condition, the relative speed between rotor and stator rotating filed is decreased so the flux cut also decreases, therefore, the emf in secondary winding will decrease and current also decrease. So in running condition induction motor draws less current compared to starting time.

What is motor load current?

Motor full load current

The full load current of a motor is the current drawn by it while operating at full load and rated voltage. It is a measured value and can also be calculated using formulae. The full load current may vary upon the applied voltage.

What is full load current?

A full load current is the largest current that a motor or other device is designed to carry under particular conditions. The starters shall be suitably rated to continuously carry the full load current of the motor and also accept the starting current surges without tripping.

What is difference between full load and no load voltage?

Full load voltage is the voltage which is the final voltage for the circuit when all the load have been considered and the circuit is assumed to be in the steady state. No load voltage is the voltage which is just the voltage appearing at the output terminal when all the system is powered up but not loaded.

What's the difference between full load current and full load amps?

The full-load amperes (FLA) is the current the motor draws while producing its rated horsepower load at its rated voltage. NEC Tables. The full-load current (FLC) is the current value listed in Tables 450.247 through 450.250.

Why no load current of induction motor is high?

Magnetic circuit of Induction motor has large reluctance than transformer due to air gap between stator and rotor, more mmf(magneto motive force is equal to product of current and number of turns) or more current is required to set up working flux in Induction motor, this is the reason of high no load current in ...

How do you calculate load current?

I= P/(1.732*V*Cos pi)

Here three-phase full load current is equal to the power divided by 1.732 times of line to line voltage and power factor.

What is FLC and FLA?

In an electric motor, FLA stands for full-load amperes, and FLC stands for full-load current. FLA represents the actual known capacity of a motor, or the rated voltage the motor is designed to draw at its rated horsepower.

What loaded current?

The Load Current can be defined as 1) Full load current: the maximum current that an electrical machine can operate; 2) Rated Current: the current rated on the nameplate of an electrical machine; 3) Nominal Current: is generally mentioned in the specification documents that is normally the same value as the rated one; ...

How do you calculate no load voltage?

Load regulation (percent) = 100 x (voltage no load — voltage full load) divided by voltage full load. Line regulation is another measure of voltage regulation.

What is load current in transformer?

What is full load current: Full load current is nothing but a the maximum allowable current to the winding and which is used to design the protection system for the transformer.

Why motor takes high current?

Probable causes of high current with load include mechanical overload, excessively high magnetic flux densities and, less frequently, an open rotor. An error in winding data that results in lower-than-design-level magnetic flux also can cause high current with load.

Why no load test is performed?

As the name suggest no load test is performed when rotor rotates with synchronous speed and there is no load torque. This test is similar to the open circuit test on transformer. Actually, to achieve synchronous speed in an induction motor is impossible. The speed is assumed to be synchronized.

Why motor takes high current during starting?

At start, the reactance of the rotor is high because the slip of the motor is equal to unity. The value of Rr/s increase as the slip gets decrease. When the induction motor is started the rotor reactance is more than the rotor resistance and because of the large Xr/Rr ratio the motor takes large inductive current.

What is the difference between FLA and LRA?

FLA: Full-Load Amps: Amount of amperage drawn when motor is working at rated horsepower. RLA: Running-Load-Amps: Same as FLA. LRA: Lock-Rotor-Amps: A motor draws a surge of amperage when it starts to get the rotor rotating and to achieve the rated horsepower.

Can a motor run at full load amps?

Full Load Amps, or F.L.A., represents the amount of current the motor is designed to draw at the rated horsepower. In the example nameplate, this means that when the motor is running under a full load at 230 volts, we can expect it to draw 5.4 amps.

What is the difference between load and amps?

The term "electrical load capacity" refers to the total amount of power provided by the main source of electricity for use by your home's branch circuits and the lights, outlets, and appliances connected to them. Total electrical capacity of an electrical service is measured in amperage (amps).
